On this page you can download our models for 3D printing (STL format). Available housing for the measuring system based on the Raspberry Pi Pico and the Cytron docking station, housing for the ultrasonic distance sensor, housing for the optical gate, housing for the thermal imaging camera.

Select proper picture and click for start download 3D model in STL format.

Below you will find our realizations of our projects, which are currently the equipment of the physics laboratory.
Stacks Image 14
Stacks Image 16

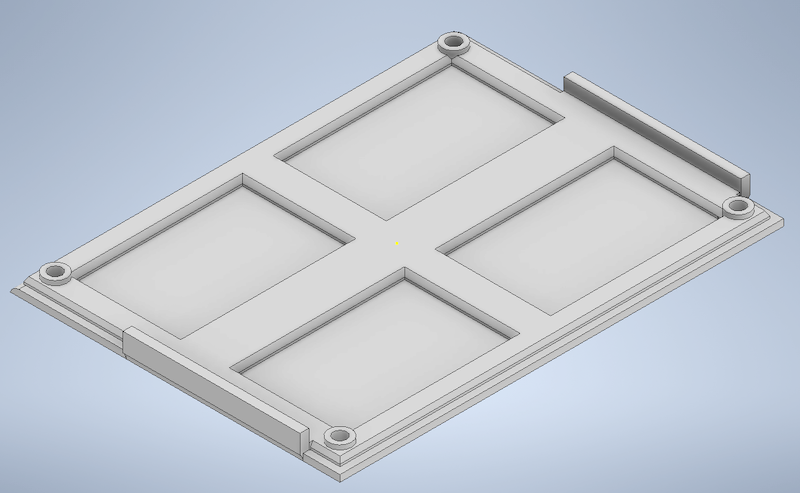

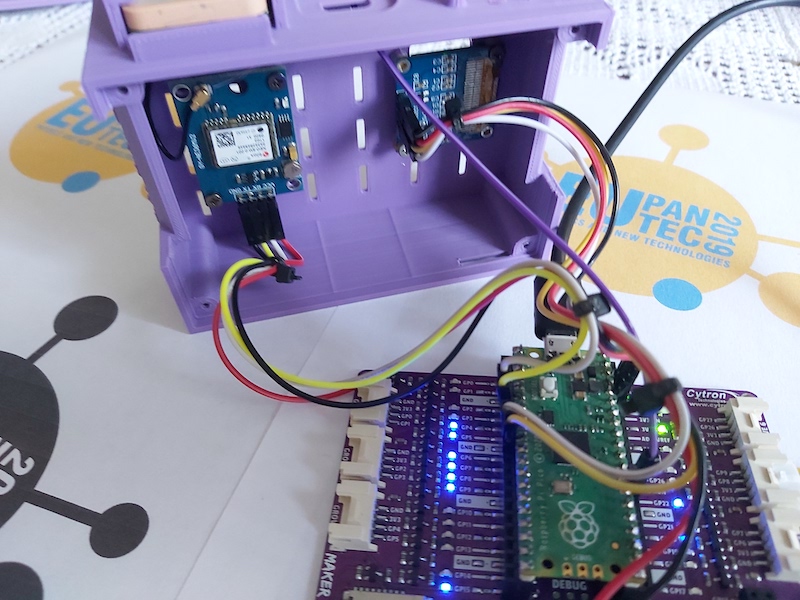

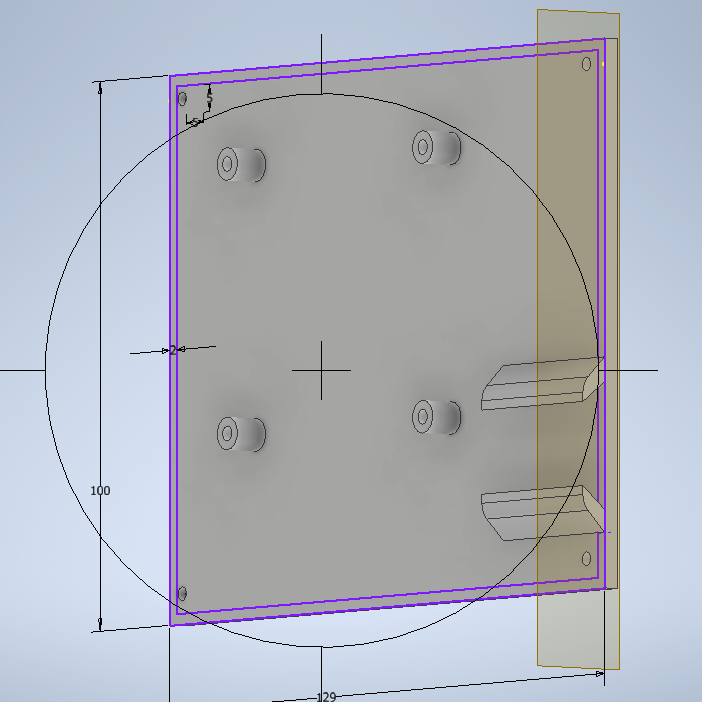

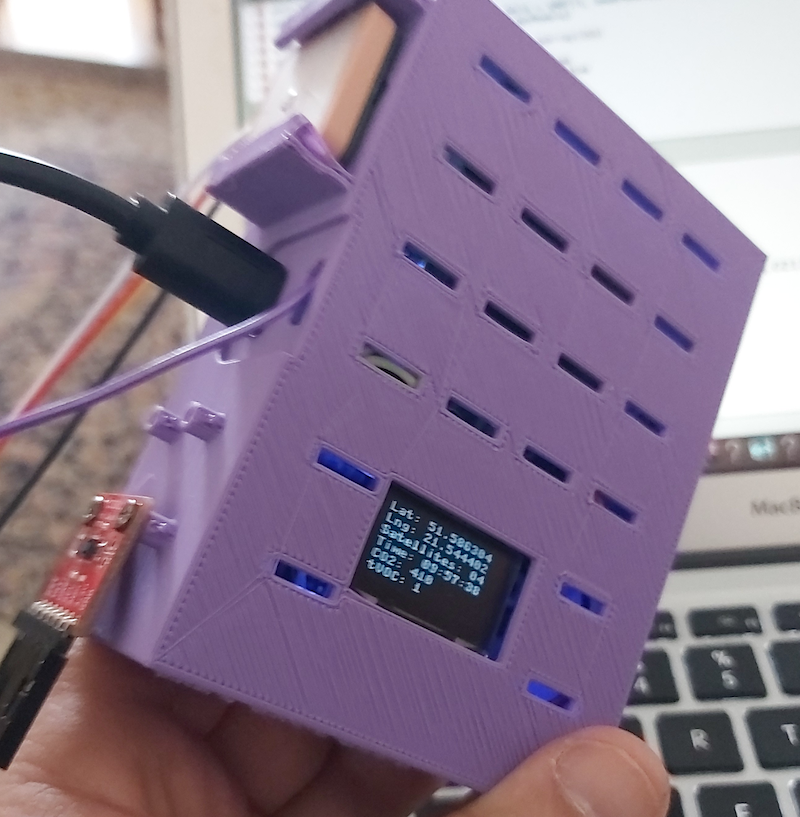

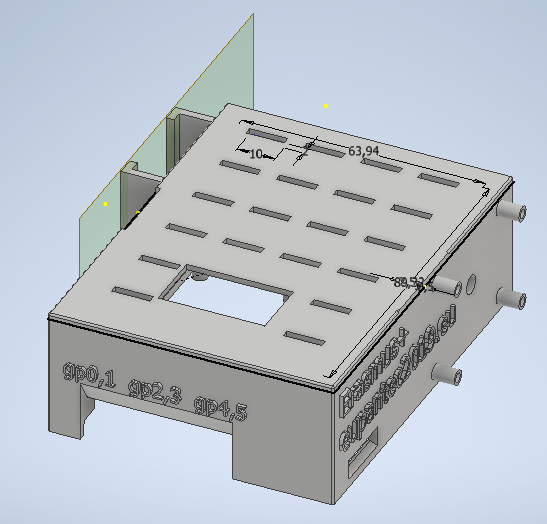

Click on the image above to download our 3D model in STL format. Enclosure of the measurement system based on the Raspberry Pi Pico microcontroller and the Cytron Maker Pico docking station.
Stacks Image 72
Stacks Image 83
Stacks Image 18
Stacks Image 20

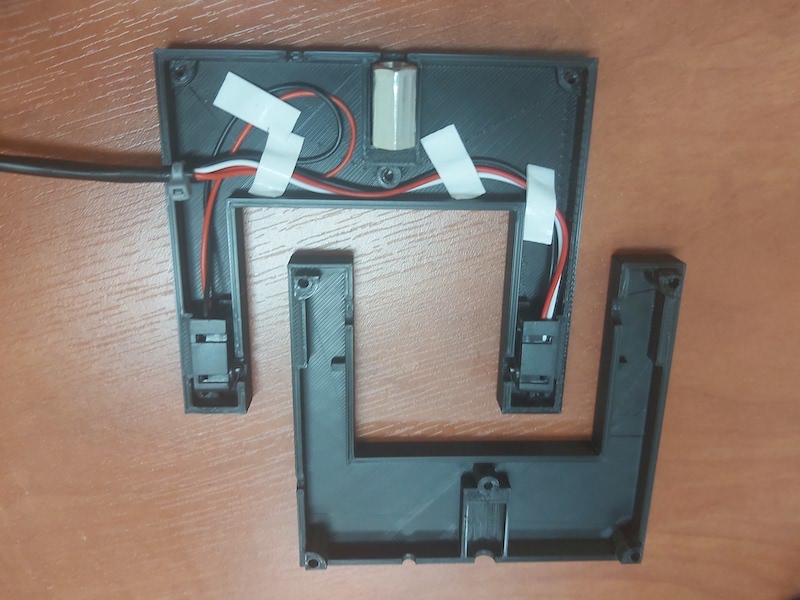

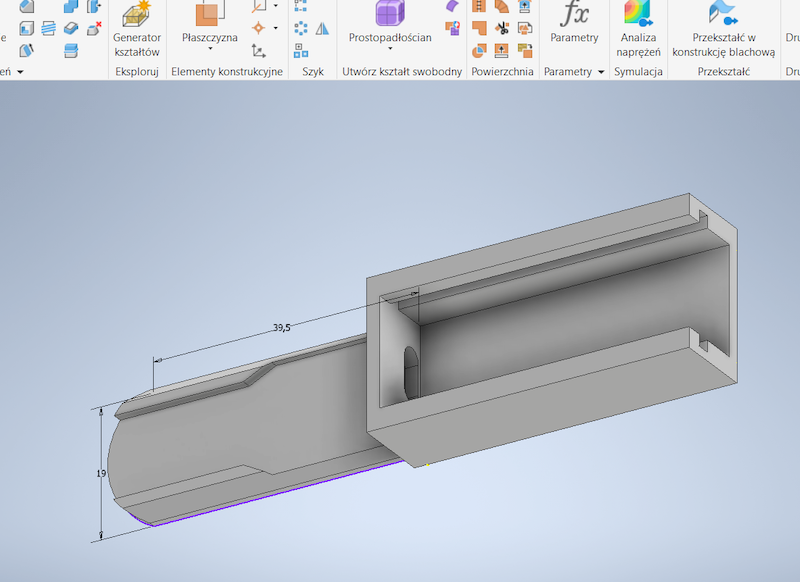

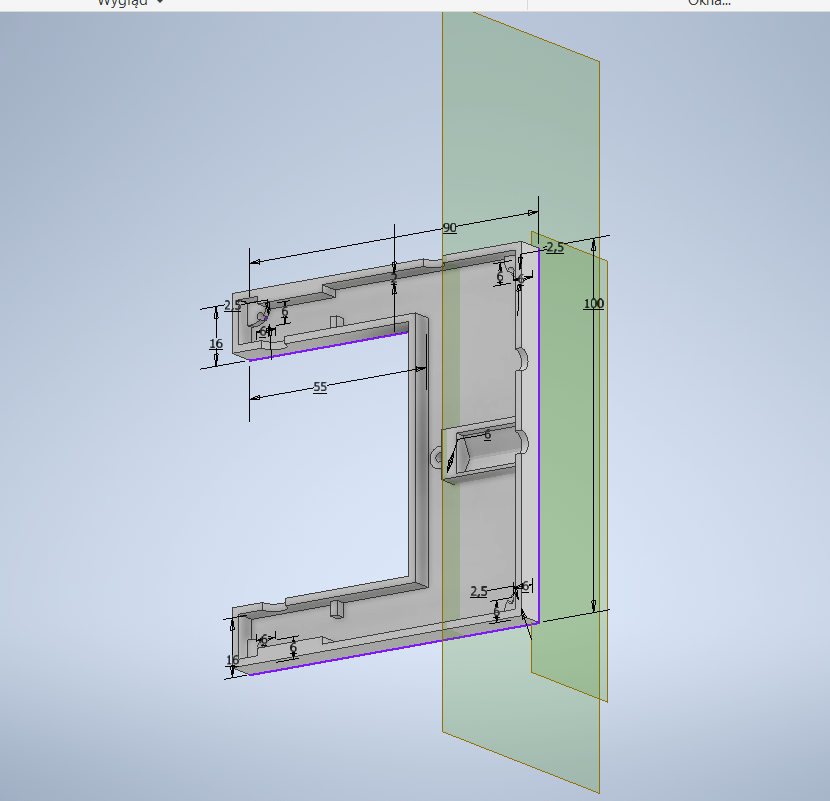

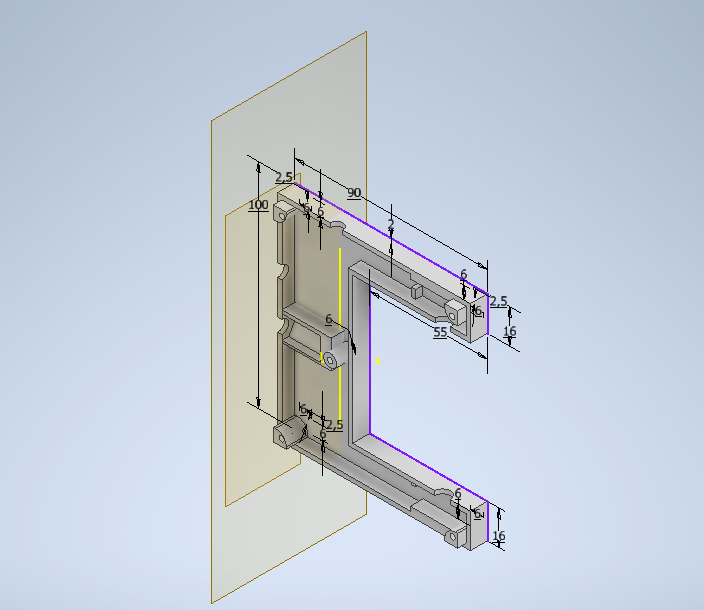

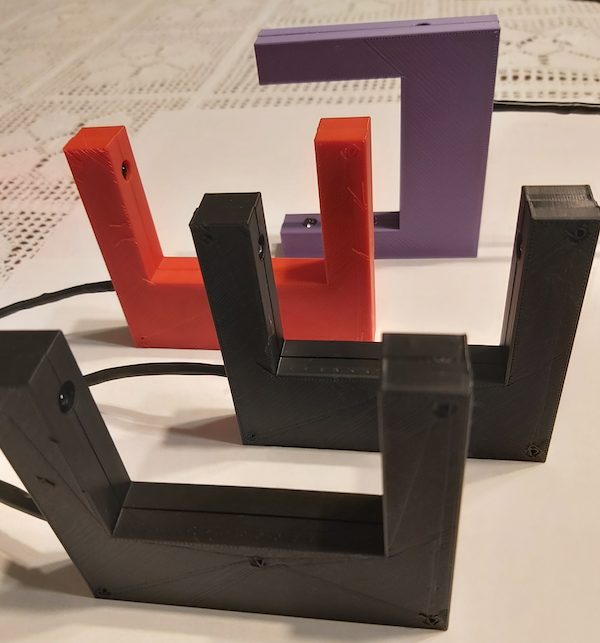

Click on the image above to download our 3D model in STL format. Enclosure for optical gate based on IR interruption sensor.
Stacks Image 92
Stacks Image 94
Stacks Image 22
Stacks Image 24
Stacks Image 26

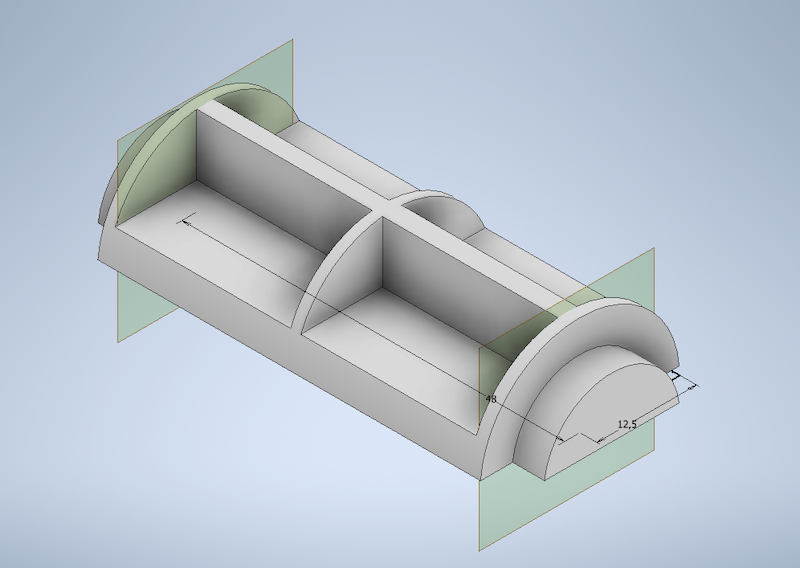

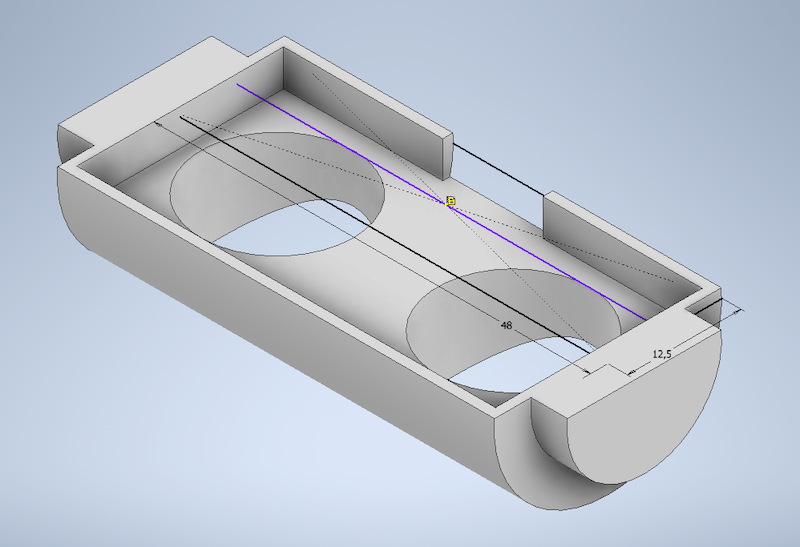

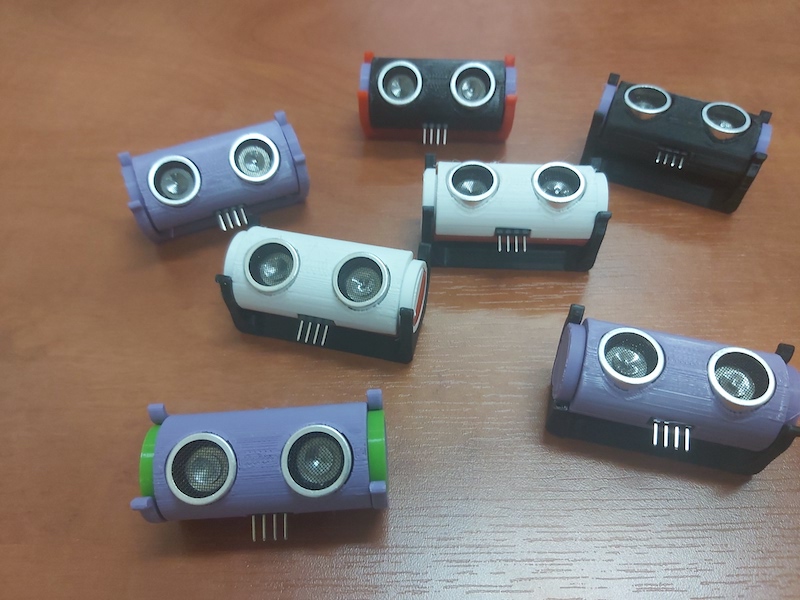

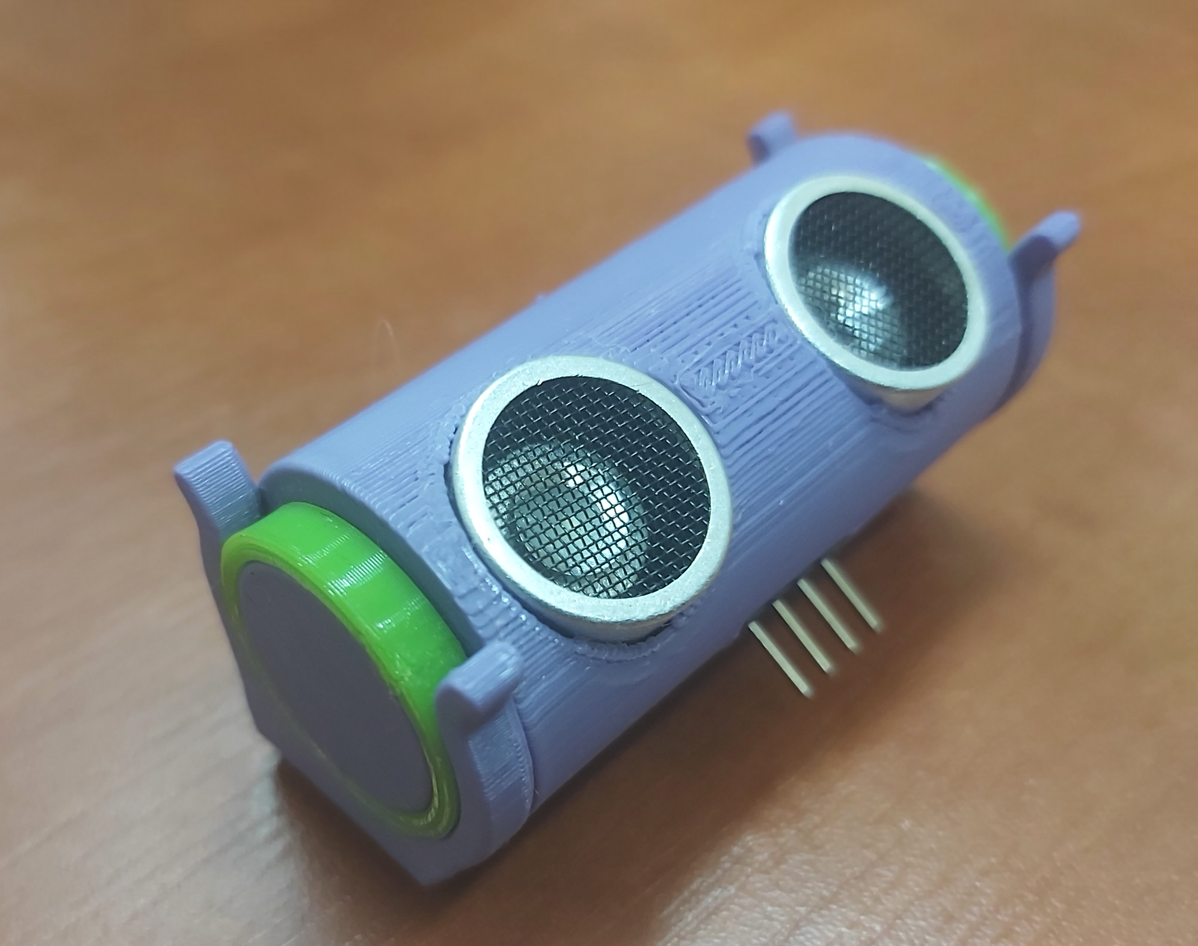

Click on the image above to download our 3D model in STL format. Enclosure for ultrasonic sensor HC-SR04P (3.3V)
In addition, from link below You can download 3D model with the base for the sensor:
https://www.printables.com/pl/model/190836-hc-sr04-casing-angle-adjustable-cradle
This base is not our design but will fit our models.

Other parts included in this link are not compatible with the sensor HC-SR04P, which we use in many experiments with Pico. Please use our design.
Stacks Image 88
Stacks Image 90
Stacks Image 30
Stacks Image 32
Stacks Image 28

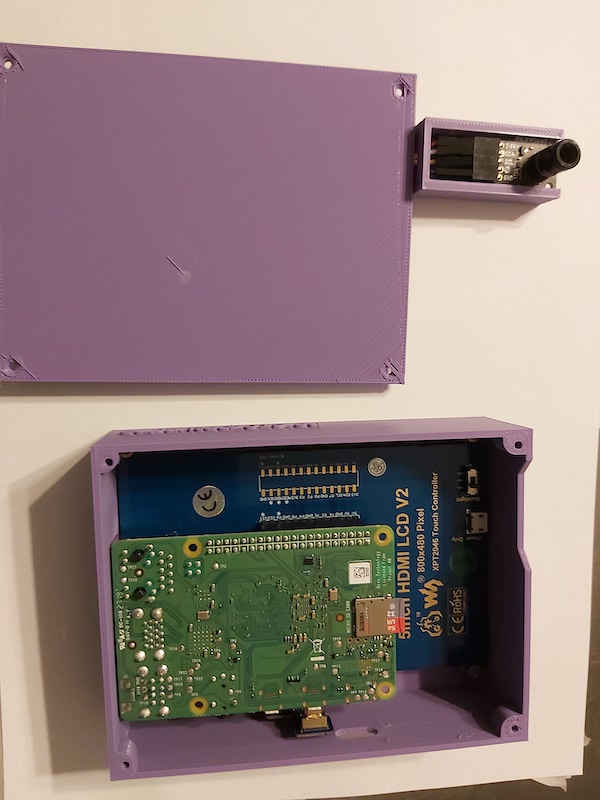

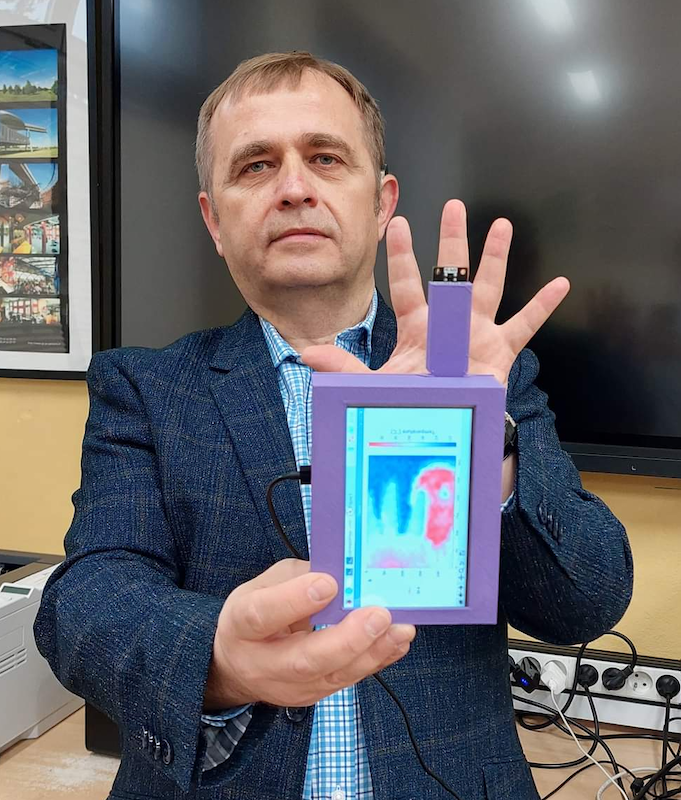

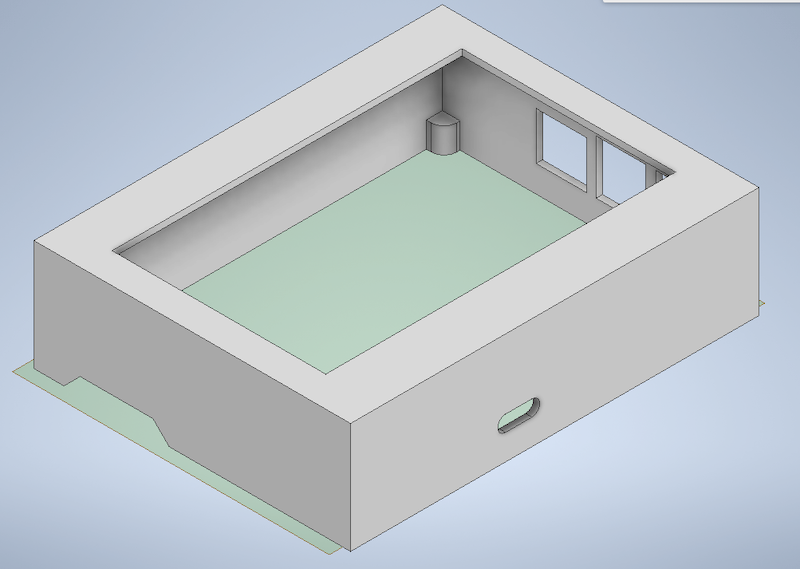

Click on the image above to download our 3D model in STL format. Housing for thermal camera based on Pimoroni MLX90640 sensor, Raspberry Pi 4 and 5" GPIO LCD touch screen from Waveshare.
Library for use Raspberry with Pimoroni thermal camera sensor you can find here:
https://github.com/EverythingSmartHome/mlx90640-thermal-camera
This Python library is made by made by EverythingSmartHome.
